Mine Development Machine (MDM5000)

Built for Mines by the Experts in Tunneling.

The MDM5000 is the world’s first successful rectangular rock boring machine, designed specifically with mines in mind.

Until now, the excavation of mining drifts and access tunnels has been accomplished through often slow and arduous drill and blast methodology. Historically, mechanized tunneling methods have lacked the customization needed to aid in expediting mining activities. The Robbins MDM5000 has changed all of that.

Designed specifically for the excavation of long drifts and access tunnels, the MDM5000 offers excavation at twice the rate of drill and blast. The rectangular profile eliminates the need to pour a road bed or cut the invert, allowing for immediate use by the mine’s fleet of vehicles.

What is the MDM5000?

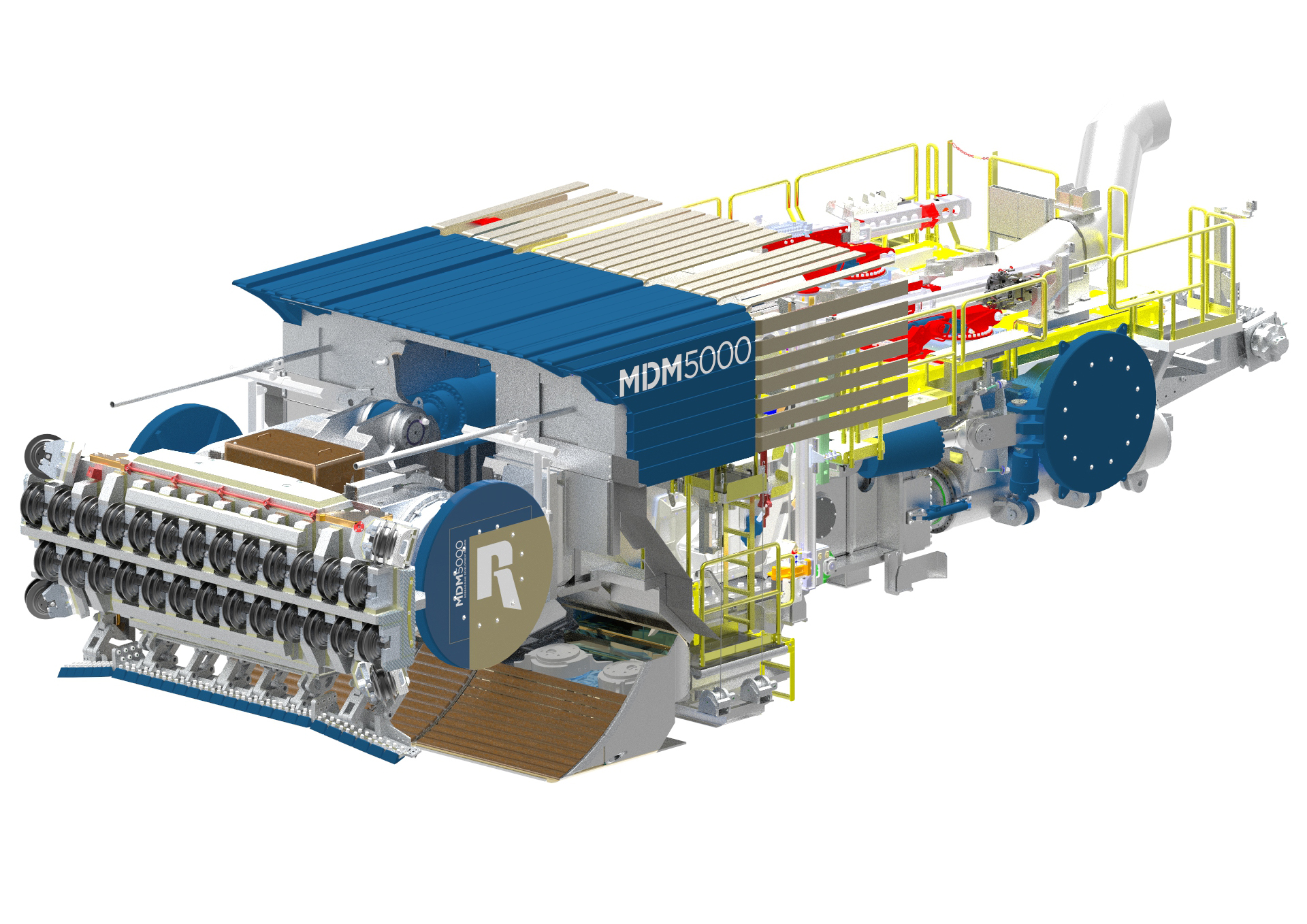

The Mine Development Machine (MDM) is a type of non-circular tunnel boring machine (TBM) developed for use in underground mining in rock up to 200 MPa UCS, particularly for long access tunnels and development drifts. Unlike traditional rock TBMs that bore a circular cross section tunnel, the MDM utilizes a reciprocating cutterhead to bore a rectangular cross section tunnel with a flat invert. The flat tunnel floor is beneficial as it enables the immediate use of rubber-tired vehicles for materials and crew transport. In comparison, if rubber-tired vehicles are to be used effectively in a circular bored tunnel, a flat roadway must be created by pouring a concrete floor or installing invert segments.  The rectangular tunnel can be a smaller cross-sectional area to achieve the same useable roadway width. This means less material must be excavated and hauled to the surface to create the roadway tunnel.

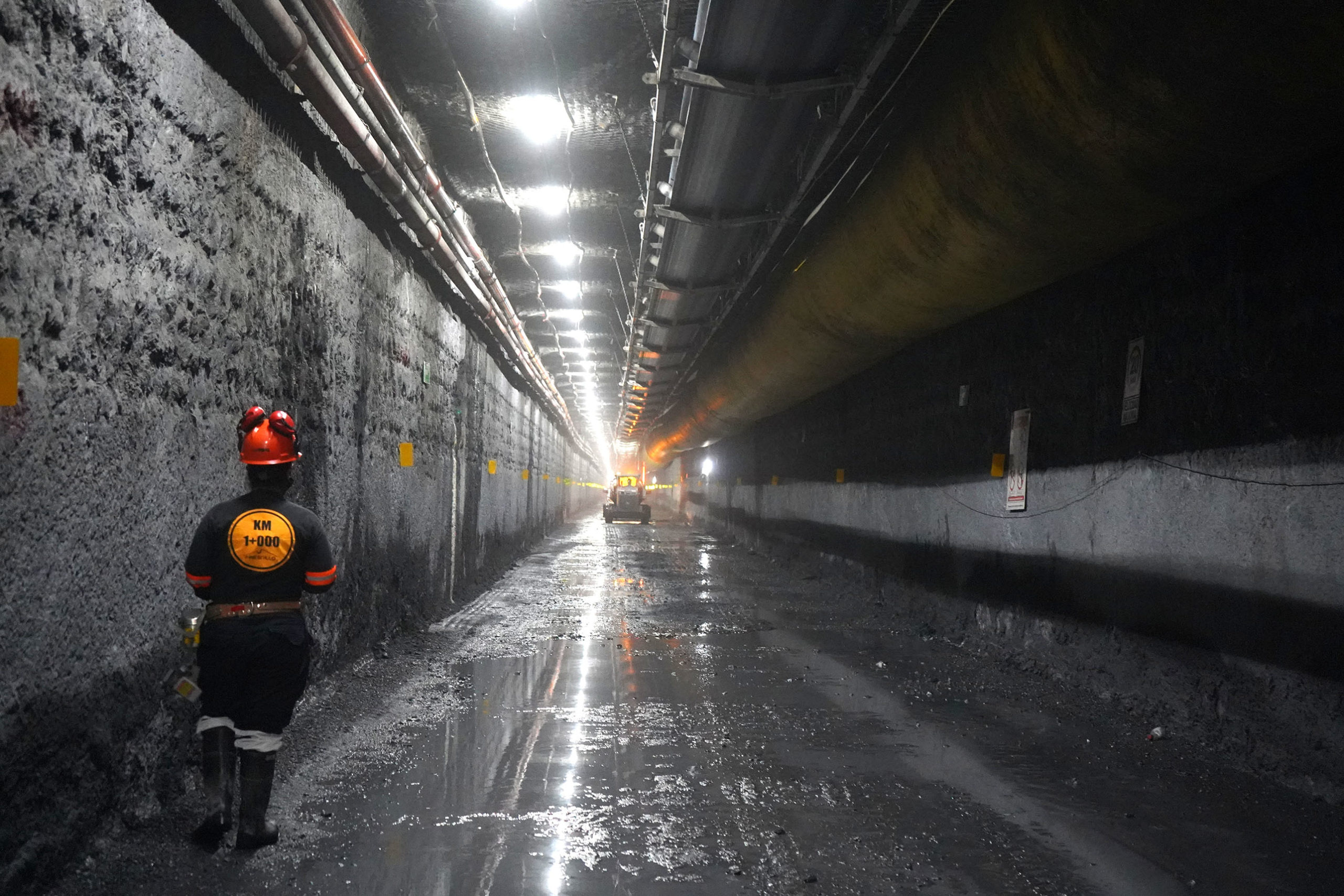

Rectangular tunnel profile

The MDM utilizes much of the same technology as a tunnel boring machine, including disc cutters that each run in the same track during a boring cycle. During boring, grippers extend against the tunnel walls, reacting the machine’s forward thrust as in standard TBMs. Hydraulic propel cylinders extend, pushing the cutters into the rock. The transfer of this high thrust through the rolling disc cutters creates fractures in the rock, causing chips to break away from the tunnel face. A unique floating gripper system pushes on the sidewalls and is locked in place while the propel cylinders extend, allowing the main beam to advance the MDM.  In addition, continuous ground support is placed immediately behind the cutterhead in a pattern that is mine-standard. Ground support and installing of utilities such as piping, ventilation, and lighting are done simultaneously to boring. Because the rock is mechanically fractured, no secondary crushing is required, and the broken rock is well suited for conveyor haulage.

There are some key differences: Whereas a standard TBM has a constant circular motion coincident to the tunnel axis during boring, the MDM utilizes a swinging cutterhead motion.  The MDM cutterhead swings up/down about a horizontal axis that is perpendicular to the tunnel axis. Muck removal in the MDM is quite different from a standard TBM, with muck being pushed back from the cutterhead on each down-sweep into a belt or chain conveyor installed at the invert. Essentially, loading of the conveyor is accomplished by the cutterhead down-sweep rather than muck buckets emptying onto a belt conveyor as the cutterhead rotates—the setup on a standard TBM.

Accelerated Access to the Ore Body

The MDM offers a number of advantages for mines over other methods including drill and blast. MDM tunneling has advance rates roughly twice those of a drill and blast heading, and results in smooth tunnel walls, less overbreak, and minimized ground support. The increased advance rates are partly due to the machine’s continuous progress, unlike drill and blast operations where crews must exit the tunnel during blasting for safety. In addition, simultaneous ground support installation further increases overall advance rates compared with drill and blast operations that must install ground support sequentially.

“We decided to work with Robbins for their experience. A lot of people have tried to provide these kinds of machines but nobody has done it. Robbins used their experience and their skills to provide us with a rectangular profile machine.”

-Fidel Morin, Projects Superintendent, Fresnillo Plc

Successful Use at Fresnillo Mine

The MDM5000 design has been tested and proven in Fresnillo at Mexico’s oldest silver mine. The machine has bored at rates of up to 52 m in one week and 191 m in one month in andesite and shale with quartz intrusions that have defied earlier excavation attempts with roadheaders. Watch the video to find out more.

Contact Us

Whether you are in the planning phase of building a greenfield mine or looking to develop access to an underground ore body, our engineers can help you identify the best solution to achieve your objectives. For more information, contact Robbins at your nearest location.

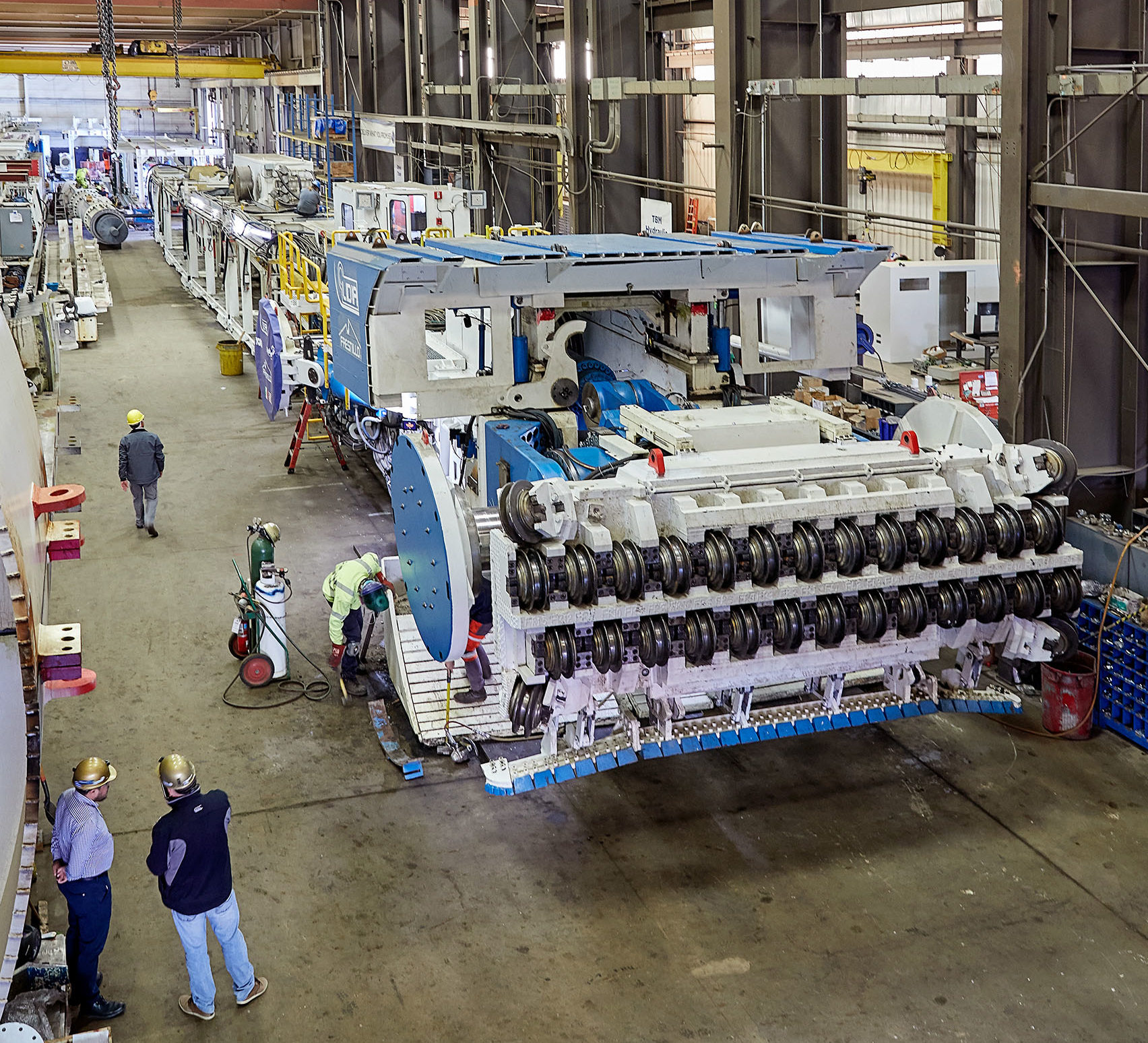

The Robbins MDM5000 during its factory acceptance in the workshop.
