The Next Generation of Versatility

Crossover TBMs take the Guesswork out of Mixed Ground Tunneling

Whether the geology of your project includes sections of hard rock, soft ground, boulders, or a little bit of everything, Robbins has a solution for you.  Not all projects fit within the parameters of specific TBM types, and at Robbins we believe that your machine should be custom-engineered for your unique project requirements.

The Crossover Solution

For the most difficult projects, Robbins Crossover TBMs can offer time-saving and efficient tunneling.  Whether the hybrid design converts between EPB and hard rock modes, between Slurry and hard rock, or between EPB and Slurry is up to you.  From heavy duty screw conveyors that handle rock to interchangeable cutting tools, Robbins Crossover TBMs are designed to cross between ground conditions that would typically require multiple machines.

What is a Crossover TBM?

Crossover TBMs are machine designs that feature advantages from two different types of TBMs, and can “cross over” between widely varying ground types that would normally require multiple machines. They are also known as hybrid or dual mode machines in the tunneling industry. For more on the various Crossover TBMs, please click on the links below to learn more about each machine type.

Crossover Rock/EPB (XRE) TBM

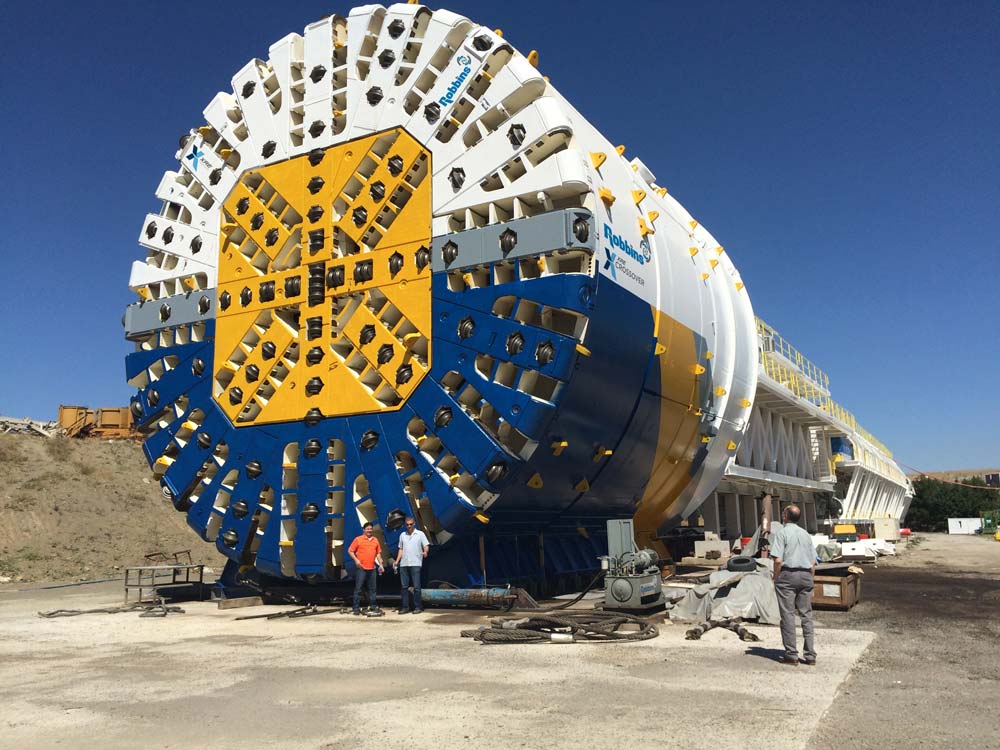

Standing for a Crossover (X) between Rock (R) and EPB (E), the XRE has been designed and deployed by Robbins on multiple projects that feature sections of both hard rock and soft ground in the tunnel alignment. Using features of both EPB and Single Shield Hard Rock machines, the XRE has successfully been used on mixed ground projects in Australia, Turkey, Mexico, India, and more. Download a specification sheet here.

Ideal in Unstable Ground

The XRE’s unique design features make it a strong choice for mixed face rock and non-self-supporting ground. A single direction cutterhead cuts down on tool and machine wear and eliminates the problem of regrind, which causes undue wear on machine elements.  Two-speed gearboxes efficiently use power to generate high torque at low RPM, allowing the XRE to get through squeezing geology and fracture zones that might leave other machines stuck.

Adaptable Design

The XRE is a versatile machine that can be customized in a number of ways. Design features often include mixed ground cutterheads with a combination of disc cutters and carbide bits.  These machines may offer conversion between a fully pressurized EPB mode and non-pressurized EPB mode, as well as a non-pressurized shielded hard rock mode.  Typically conversion is done by changing out the system of muck removal or by using a specialized muck removal system.  Muck removal conversions may involve using a robust screw conveyor that can excavate rock, switching from screw to belt conveyor in the tunnel, or converting between an open/closed center-mounted screw conveyor.


At diameters over 12 m, the XRE design becomes even more versatile. Large XRE TBMs can be designed without compromising one machine type over the other.  Current setups allow the belt conveyor to remain in place along with the screw conveyor, eliminating the conversion step between screw and belt.  Instead, a hydraulic muck ring moves the conveyor into place if hard rock is encountered.

“The performance of the XRE machine has been very good given the geology we have encountered during the project. We do plan to use Robbins for upcoming projects.” — Andrés Alanís, CEO of RECSA group, contractor for TEP II

Proven in the Field

  • Engineers can optimize your machine’s design based on a unique scenario. For example if the tunnel is 80% soft ground and 20% hard rock, Robbins engineers will optimize the overall machine design towards favorable EPB operation.
  • Customized machines can be built using Onsite First Time Assembly (OFTA) in order to fit within a tight project schedule.
  • Crossover Machines have the potential to lower risk and make difficult excavations possible, as long as accurate geological information is available.
  • Mixed conditions require cutterheads capable of a wide spectrum of possibilities. In most XRE machines, abrasion-resistant wear plates and wear indicators help contractors monitor and minimize tool wear in complex ground. A single-direction cutterhead further reduces wear and regrind, making tunneling more efficient.
  • Machines can be designed for extreme conditions, such as high water inflows and fault zones. The XRE TBM can be designed with closure gates to contain water and breakout torque to bore through squeezing ground or faults.

Crossover Slurry/EPB (XSE) TBM

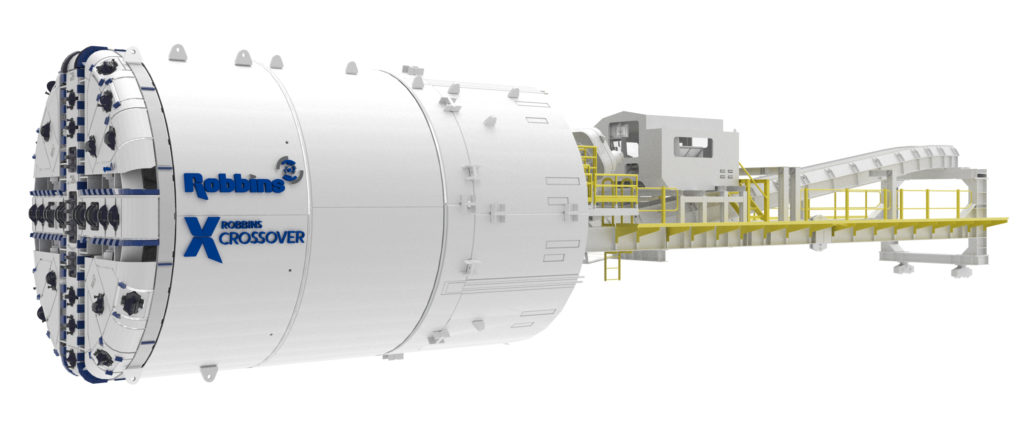

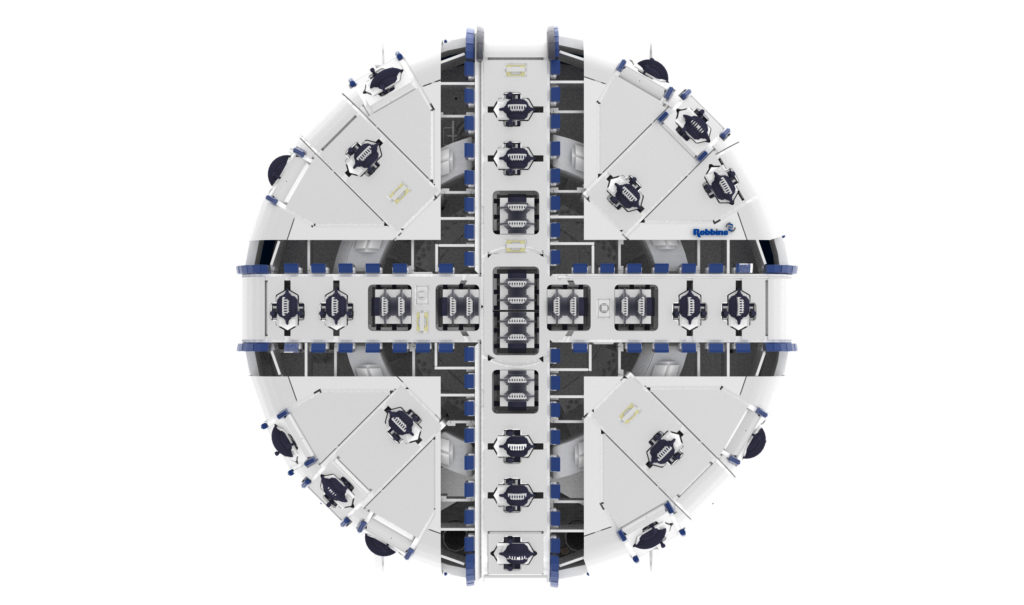

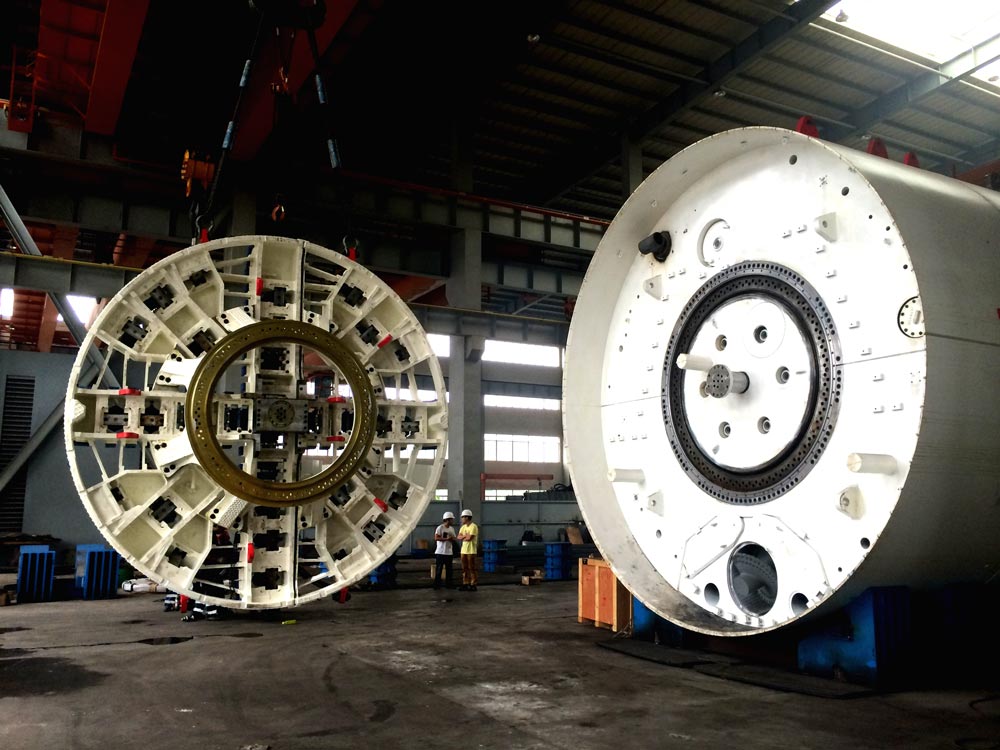

In urban environments with mixed ground conditions, settlement is not an option, and must be kept as close to zero as possible.  The XSE TBM—standing for a Crossover (X) between Slurry (S) and EPB (E), fits the bill in many cases. In variable ground the XSE combines the best aspects of both proven TBM designs, making for an incredibly versatile solution. Download a specification sheet here.


In EPB Mode

In low permeability soils without high hydrostatic pressures, the XSE can advance quickly and efficiently in EPB mode without the expense and complication of slurry-based muck handling. While in EPB mode, any slurry treatment plant on site can be simplified and more economical. In EPB mode the machine utilizes a screw conveyor to maintain face pressure and remove muck.  Because there is no slurry at the excavation face, pressure control is safer and any over-excavation is immediately apparent.

Did you know: The Crossover XSE is the most versatile type of TBM? It can be fully customized with both EPB and Slurry TBM features to excavate in nearly all ground conditions.

In Slurry Mode

In high permeability soils and areas with high hydrostatic pressures, the XSE can run in slurry mode, thereby eliminating the problems of inaccurate volume monitoring and pressure control that EPBs encounter in these conditions.  In slurry mode muck empties into a completely enclosed slurry box.  Boulders are broken up using a crushing mechanism in the box, while small cobbles are capable of passing through the slurry pipes.



  • If your tunnel does not consist entirely of high permeability soils, then the XSE is a solution that does not require costly slurry tunneling for the entire tunnel length
  • Save time and money in low permeability sections by running the XSE in EPB mode, which does not require a full slurry separation plant
  • In high permeability sections, switch to slurry mode to ensure accurate volume monitoring and pressure control in these conditions
  • Get the best features of two machines with one machine order, and a versatile solution that could be used on multiple projects with variable ground

A Machine for Every Geology

See which machine is right for your project
